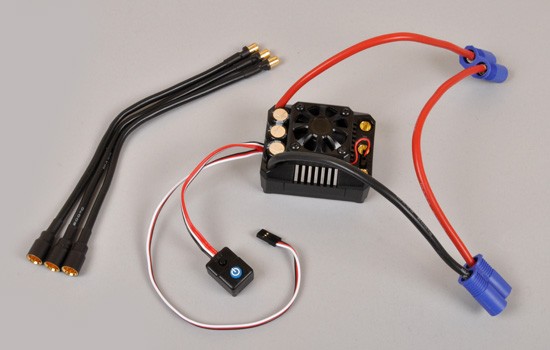

Hobbywing Ezrun MAX6 ESC Sensorless 160 Amp, 3-8s LiPo

Hobbywing Ezrun MAX6 ESC Sensorless 160 Amp, 3-8s LiPo

This controller is especially designed for 1/5 and 1/6 scale cars. It features an aluminium heat sink backed by a mini cooling fan which optimize the operating temperature for any motor or power supply used. Power supply by 3 up to 8S Li-Po batteries only. It offers a progressive start, a linear acceleration even if the pilot gives throttle partially or progressively. The controller function parameters can be more easily adjusted using the program card.

Current (constant) : 160A/ Peak : 1050A
Battery : 3-8S Li-Po or 9-24 Ni-Mh
BEC 6-7,4V / 6A
Dimensions : 70x56x46,5mm
Weight : 240gr
Flexible cables with EC8 connectors
Functions : forward, reverse, brake, motor brake
Adjustable brake-> reverse delay
Adjustable braking power
Adjustable cut-off voltage
Selectable motor rotation direction
Selectable acceleration mode


Functions
Compatible with sensorless /sensored brushless motor (only in sensorless mode)
Three operating modes : forward/brake – forward/brake/reverse – forward/reverse with brake.
Proportional braking with 9 adjustment ranges, and 9 adjustment ranges for the motor brake
Five “Initial Acceleration” modes : LOW, MEDIUM, MEDIUM/HIGH, HIGH and VERY HIGH.
Multiple protections : Low voltage cut-off for Li-Po/Ni-MH batteries, heat protection.
Easy programming using the set-up button or the program card (available separately)
